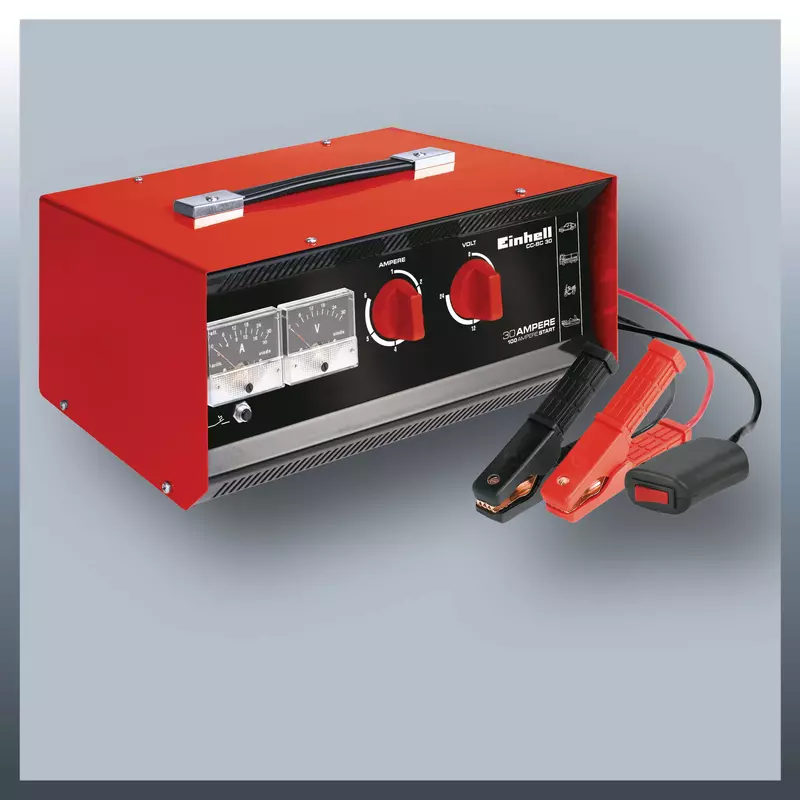

Battery Charger
CC-BC 30
Battery Charger
CC-BC 30
See more information
Dealers on site
Article description

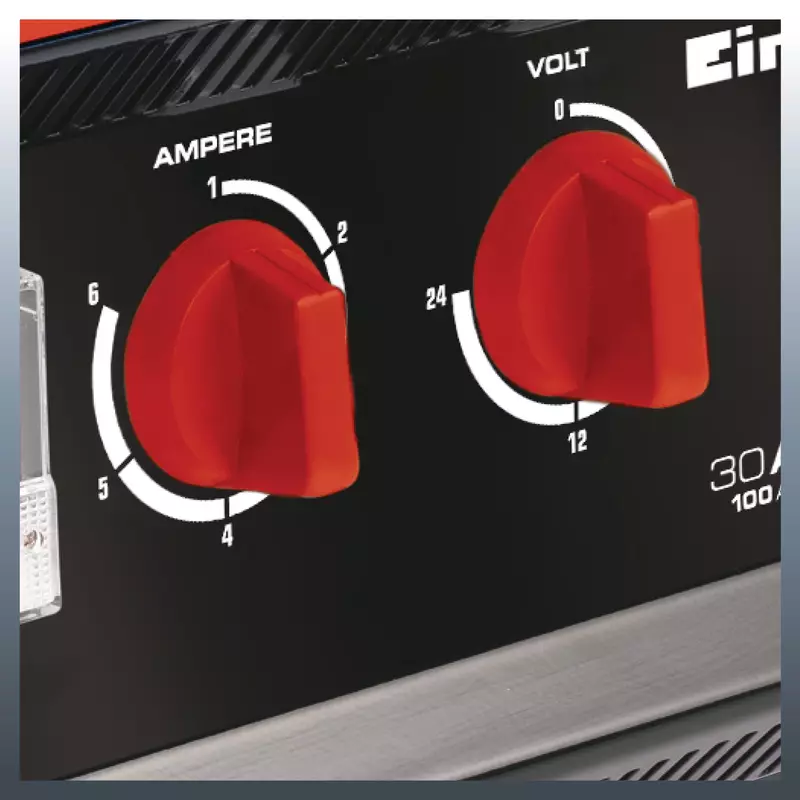

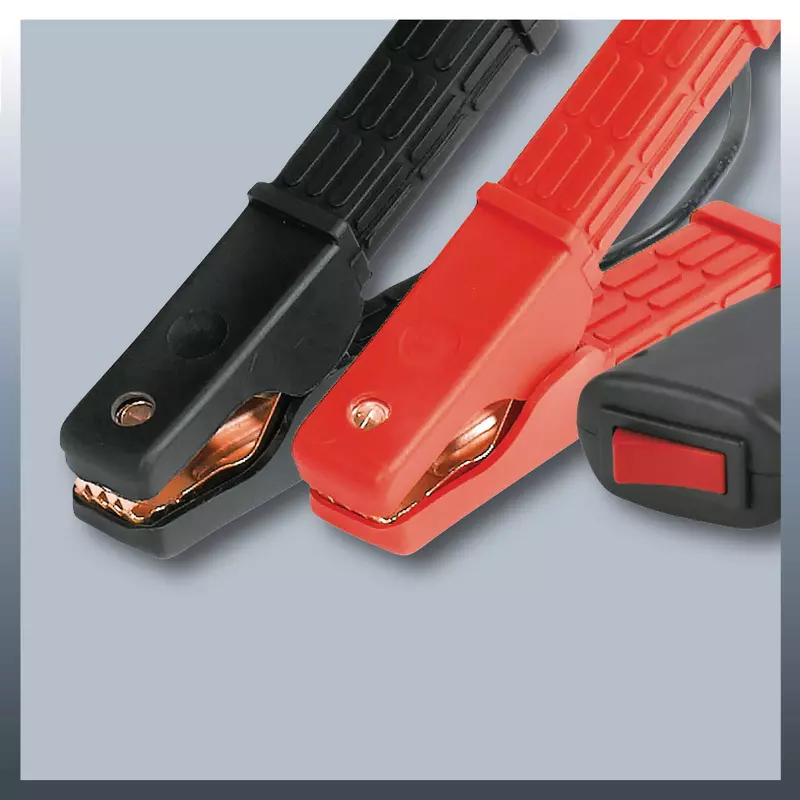

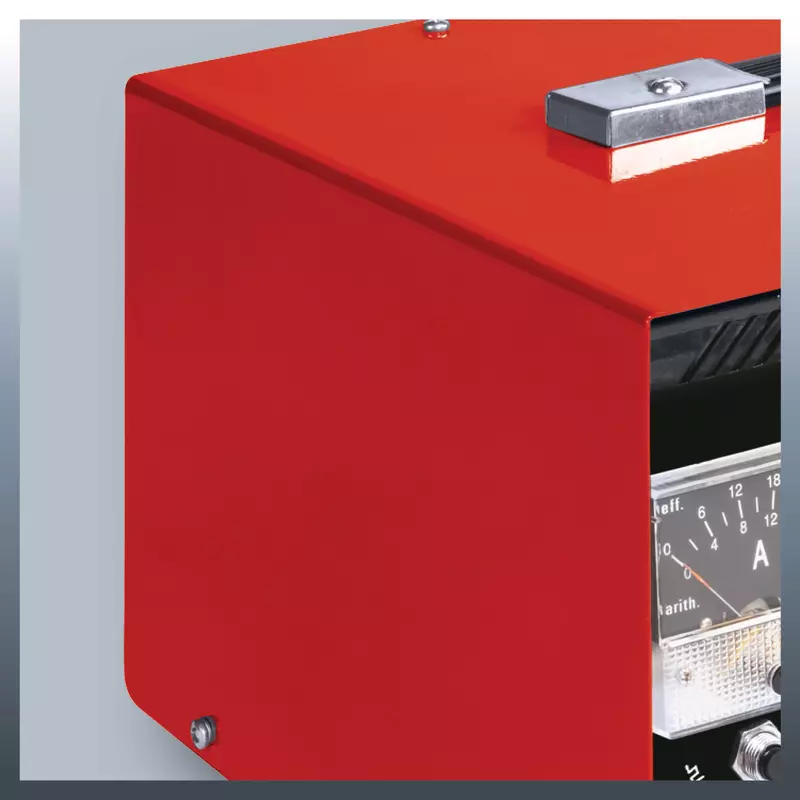

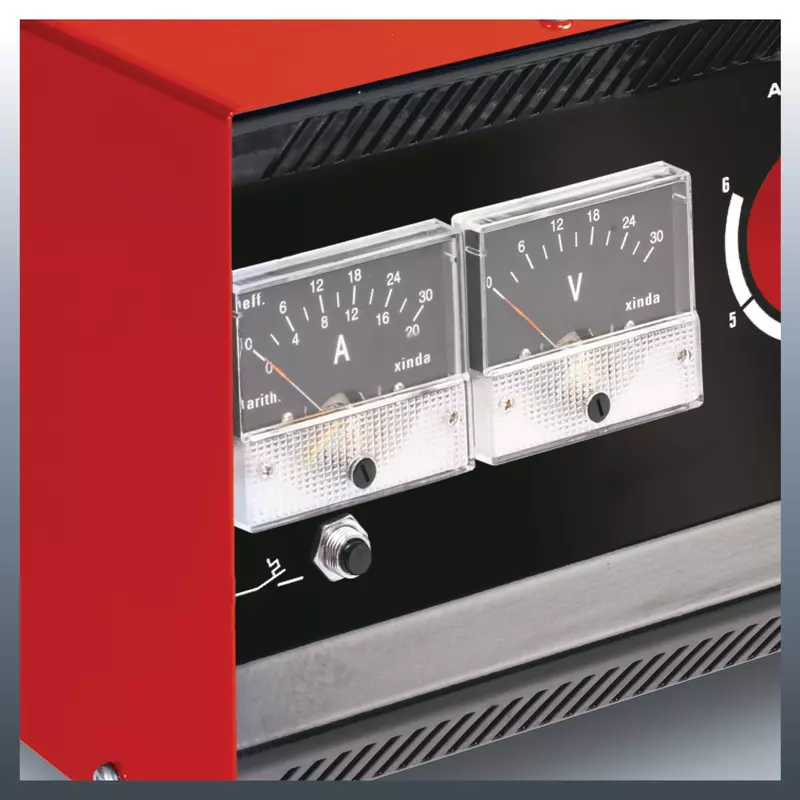

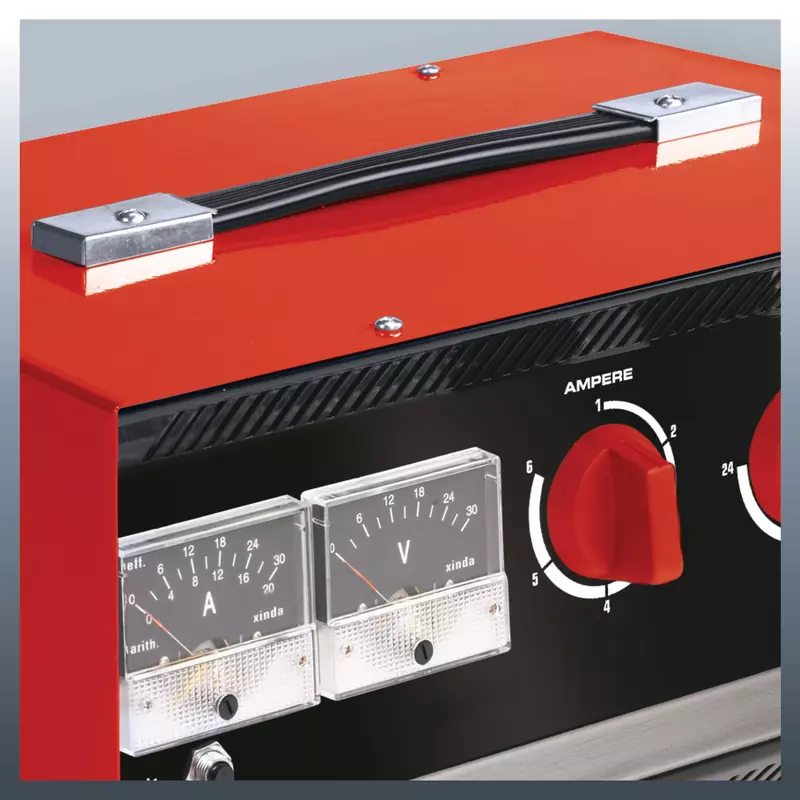

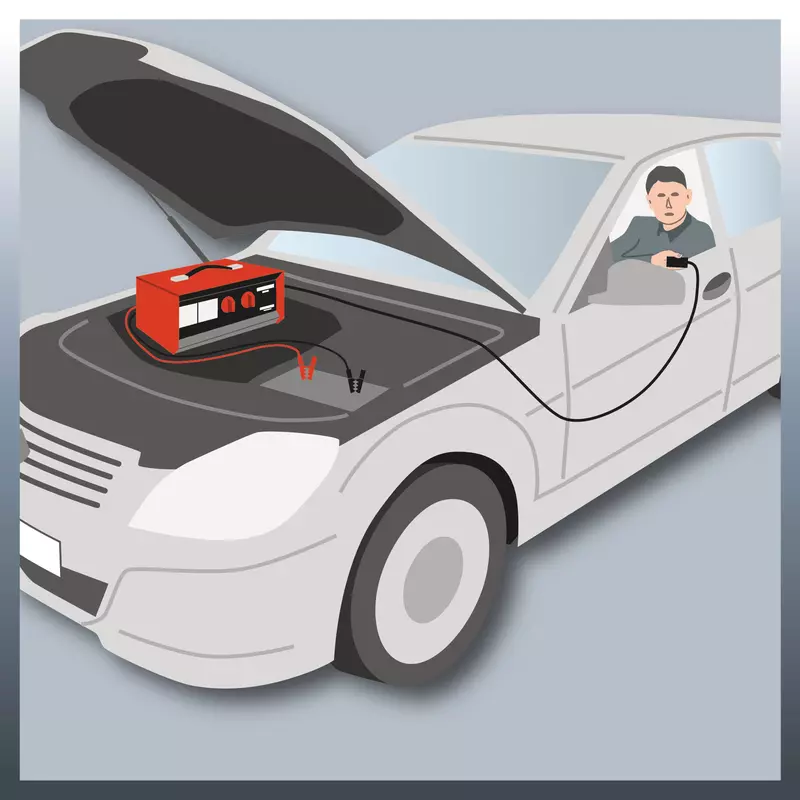

The CC-BC 30/1 battery charger is a powerful and robust charger for workshops with switchable charging voltage of 6V/12V/24V and starting aid equipment. Therefore, it is optimally suitable for workshops, agricultural purposes and payload traffic. The charging rate is adjustable at 6 steps, and the starting aid equipment (100A/5s) can easily be operated by a jump starting switch on the device. The current charging rate, as well as the charging voltage, can be read from the two largely dimensioned display instruments, and the charging procedure can be supervised. The strong and totally insulated terminal clamps grant an optimal contact to the battery terminals. Additionally, the device is equipped with a 2-fold reverse polarity- and overload protection, and it has a scratch-proof, powder-coated sheet steel housing with a stable handle.
Technical details
| Mains supply | 230 V | 50 Hz |
| Jump start | yes |
| Charging voltage | 6 V/ 12V/ 24V |
| Boost engine output (Ampere for seconds) | 100 A - 5 sec |
| Charging current Min. (arith./eff.) - Max. (arith./eff.) on 6 V d.c. | 0,7 / 0,9 - 21 / 30 A |
| Charging current Min. (arith./eff.) - Max. (arith./eff.) on 12 V d.c. | 1,0 / 1,6 - 20 / 30 A |
| Charging current Min. (arith./eff.) - Max. (arith./eff.) on 24 V d.c. | 1,8 / 3,0 - 14 / 20 A |
