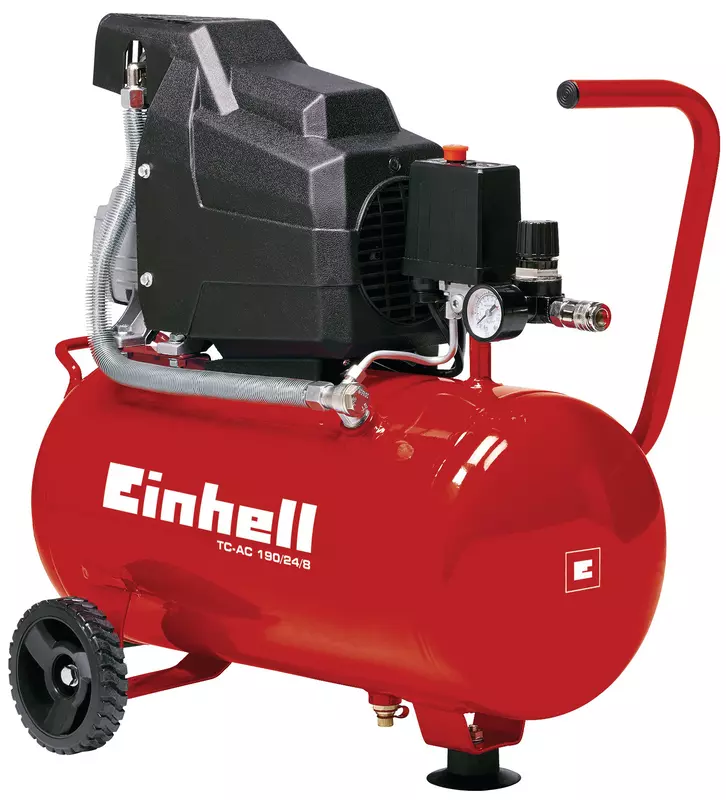

TC-AC 190/24/8

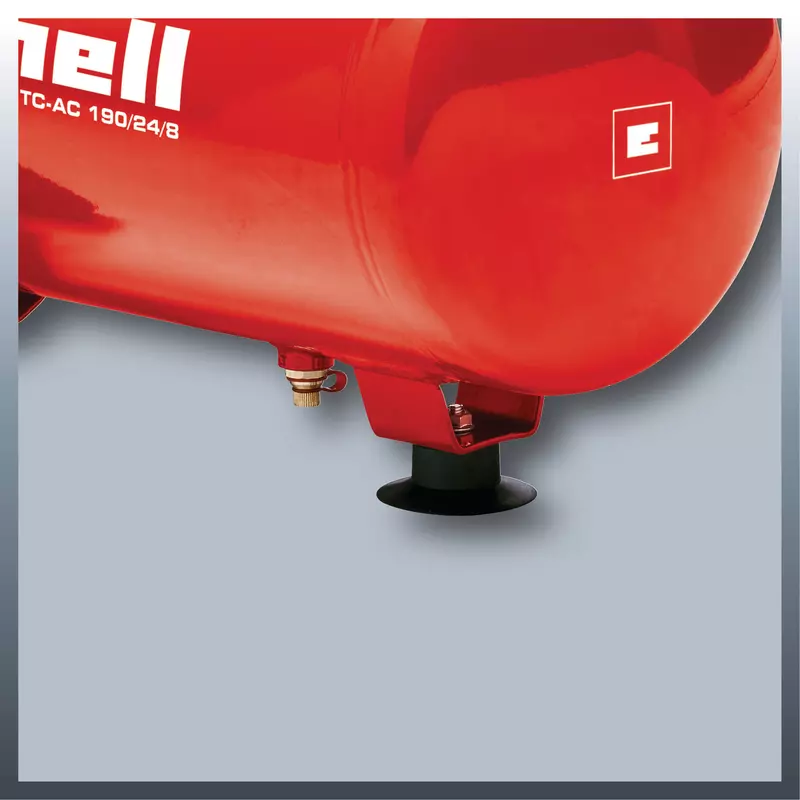

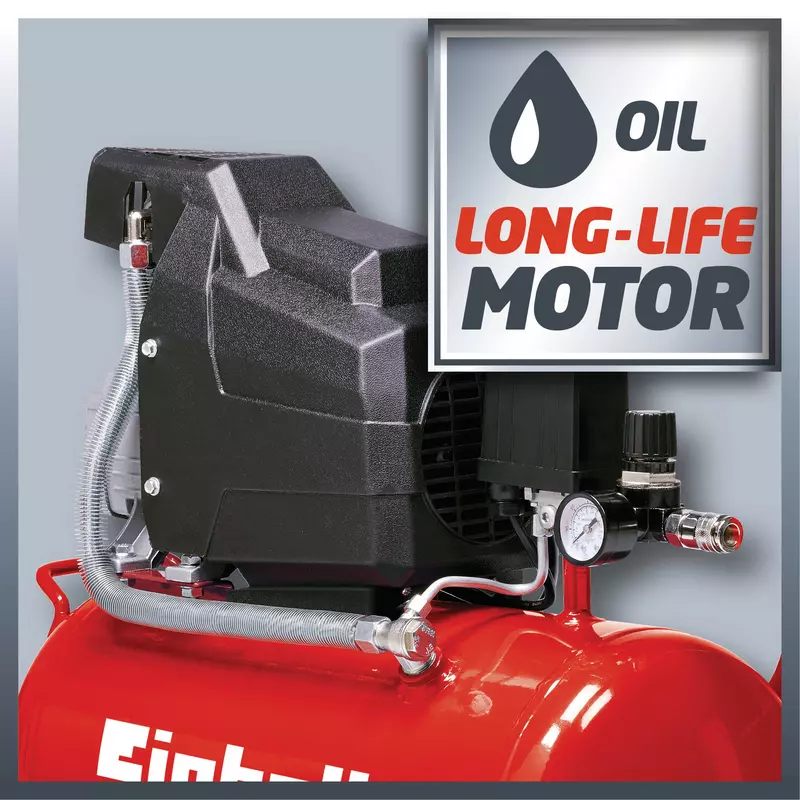

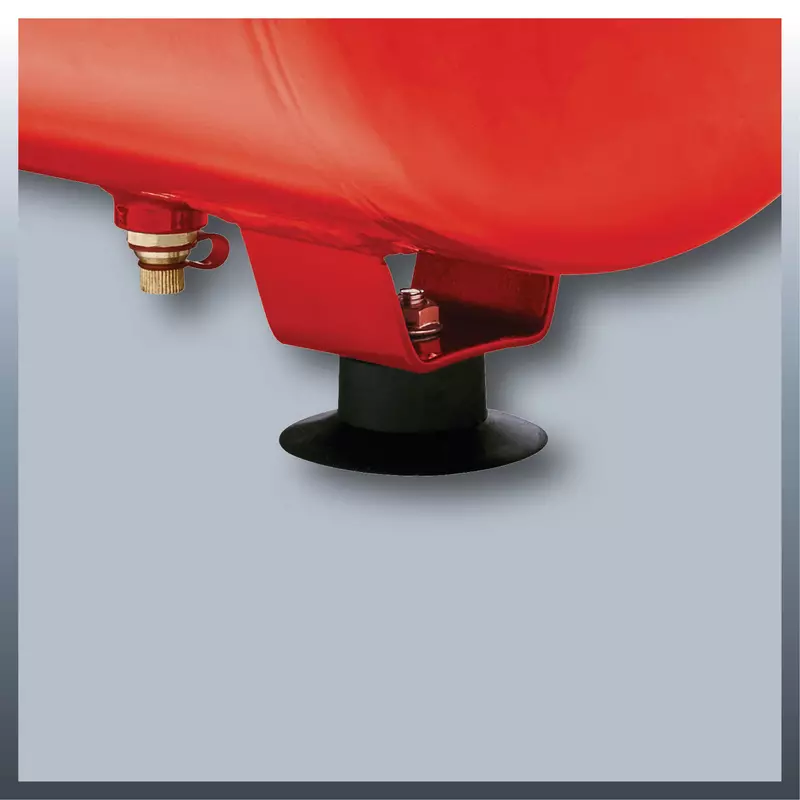

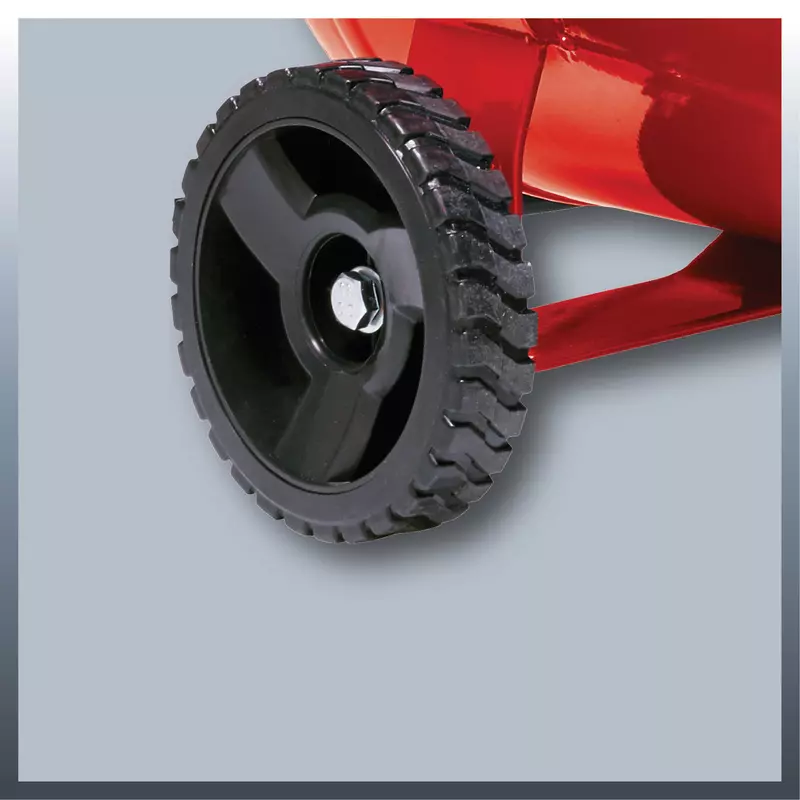

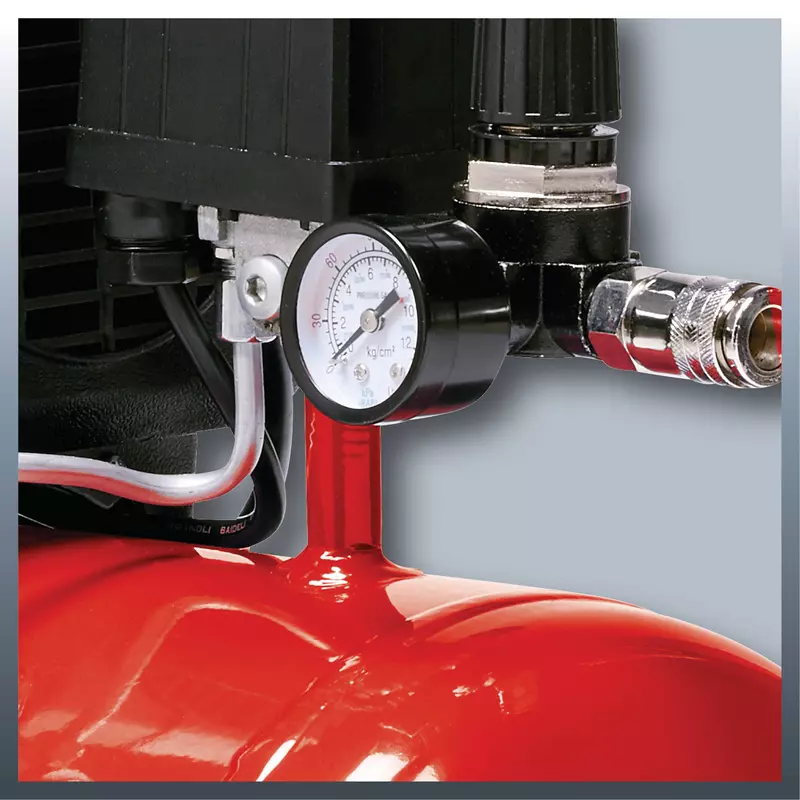

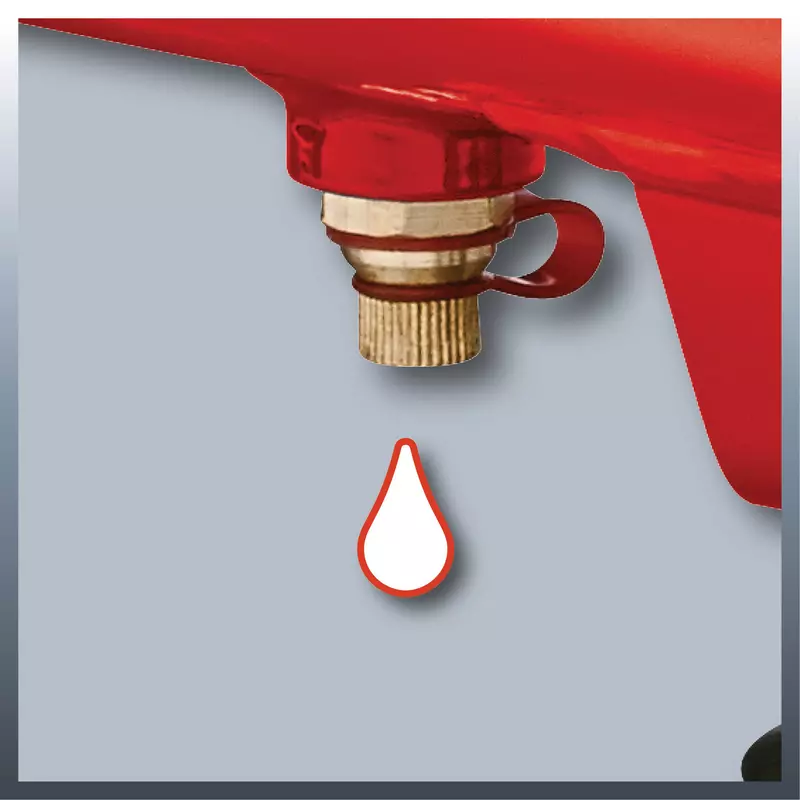

The TC-AC 190/24/8 is a versatile compressor, which is doing a good job at a lot of works with compressed air due to its compact measures and 8 bar working pressure. The regulated working pressure can be set precisely with the pressure reducer, and is displayed on the pressure gauge. Via quick connect, various compressed-air tools can be operated quickly and without tools. The oil lubrication pump saves the durability of the compressor. The suction filter of the air compressor is easy to access and allows simple cleaning. The operator´s safety is optimally provided due to the automatic pressure switch, check- and safety valve. The condensate can be drained off the vessel comfortably and properly per drip cock. The vibration-absorbing foot avoids vibrations and reduces noise. The transport handle and two rubberized wheels care for quick mobility and simple transport. There is a 10- years warranty against rusting through of the solid construction vessel.
Technical details
Mains supply | 220-240 V | 50 Hz |
Max. engine power (S2 | S2time) | 1500 W 15 min |
Motor speed | 2850 min^-1 |
Pump speed | 2850 min^-1 |
Suction capacity | 165 L/min |
Output power at 0 bar | 110 L/min |
Output power at 4 bar | 75 L/min |
Output power at 7 bar | 55 L/min |
Max. operating pressure | 8 bar |

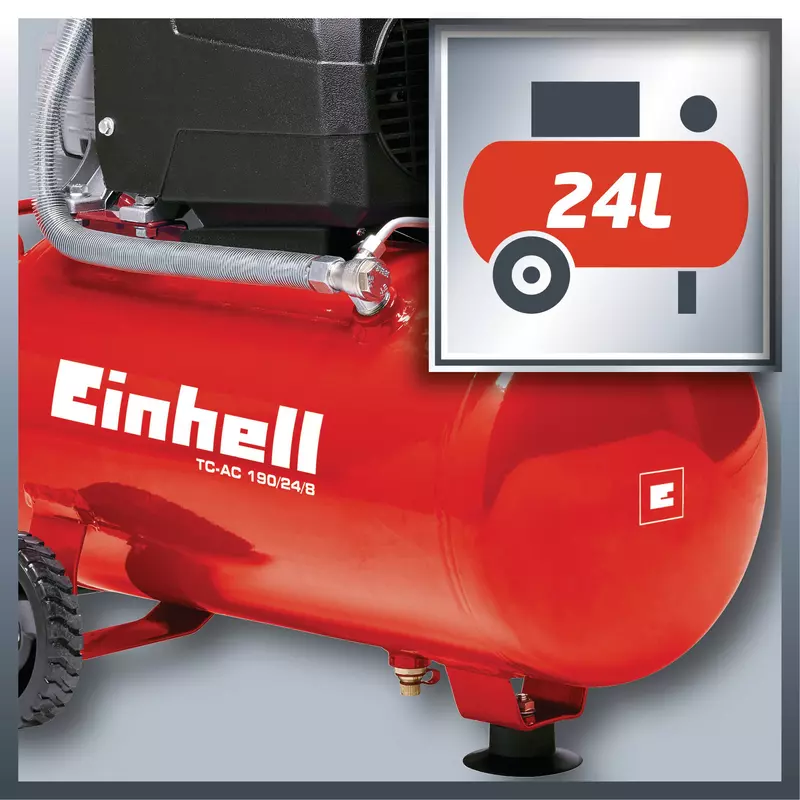

Tank volume | 24 L |
Number of cylinders | 1 Pieces |
Sound pressure level; Lpa | 73.4 dB (A) |
