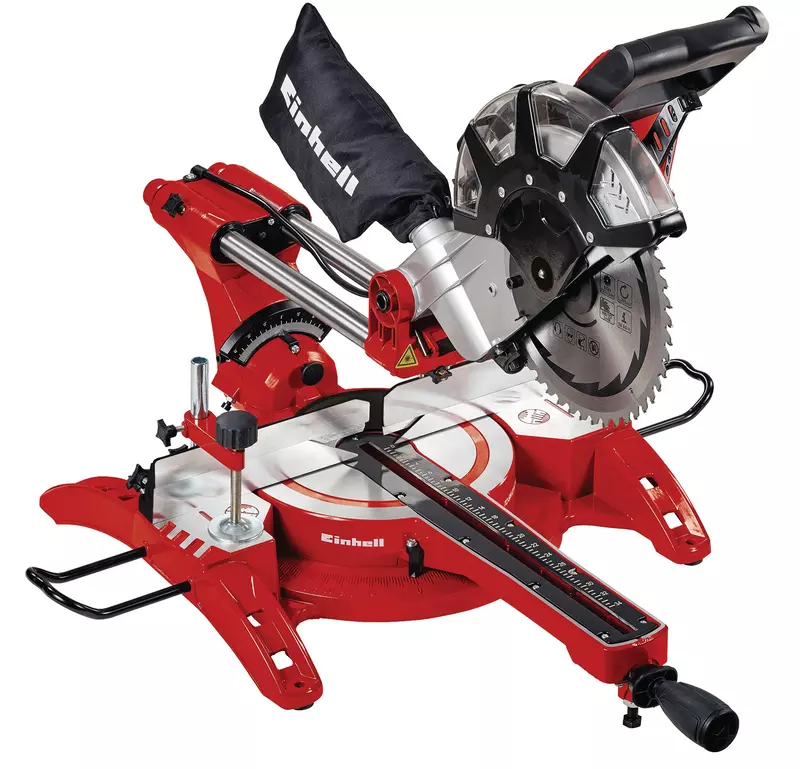

TC-SM 2534 Dual

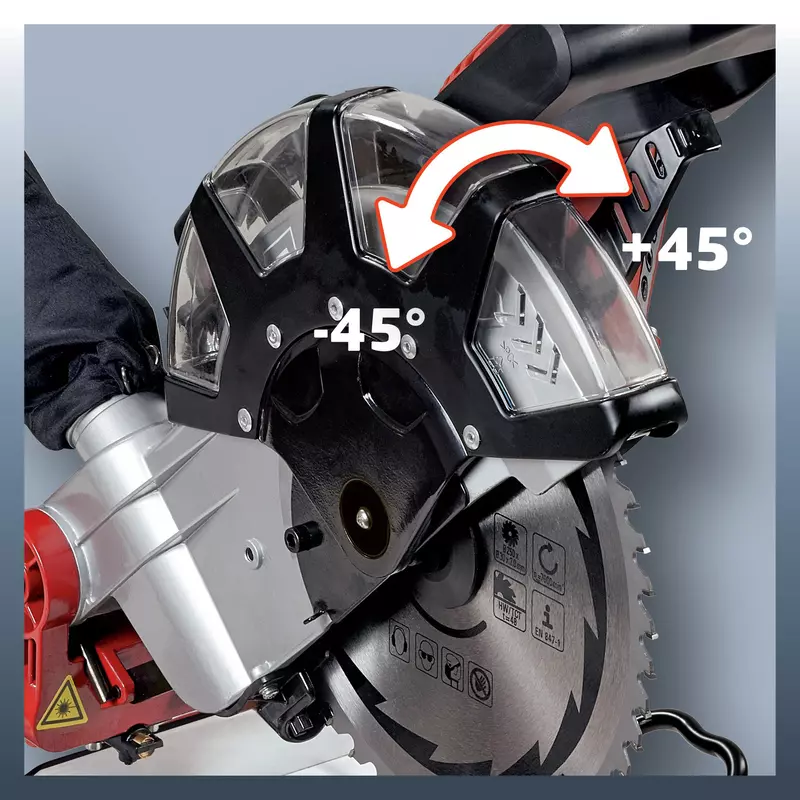

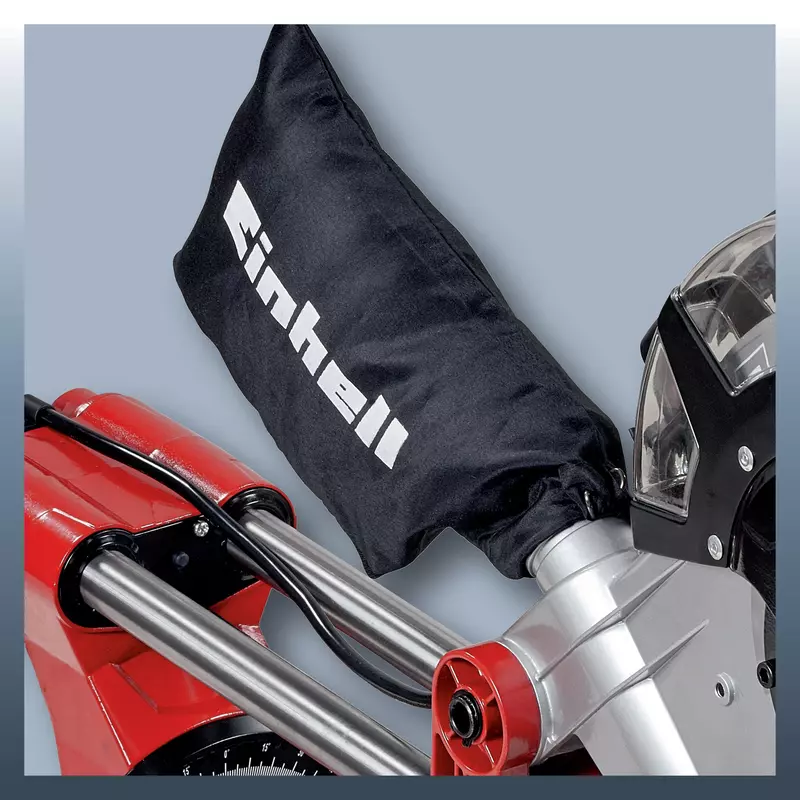

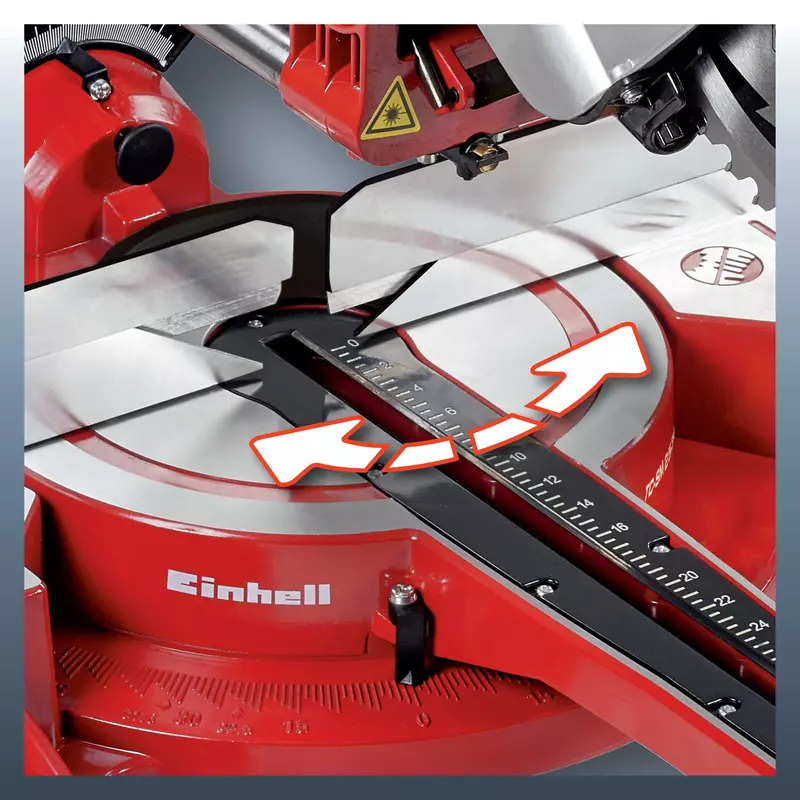

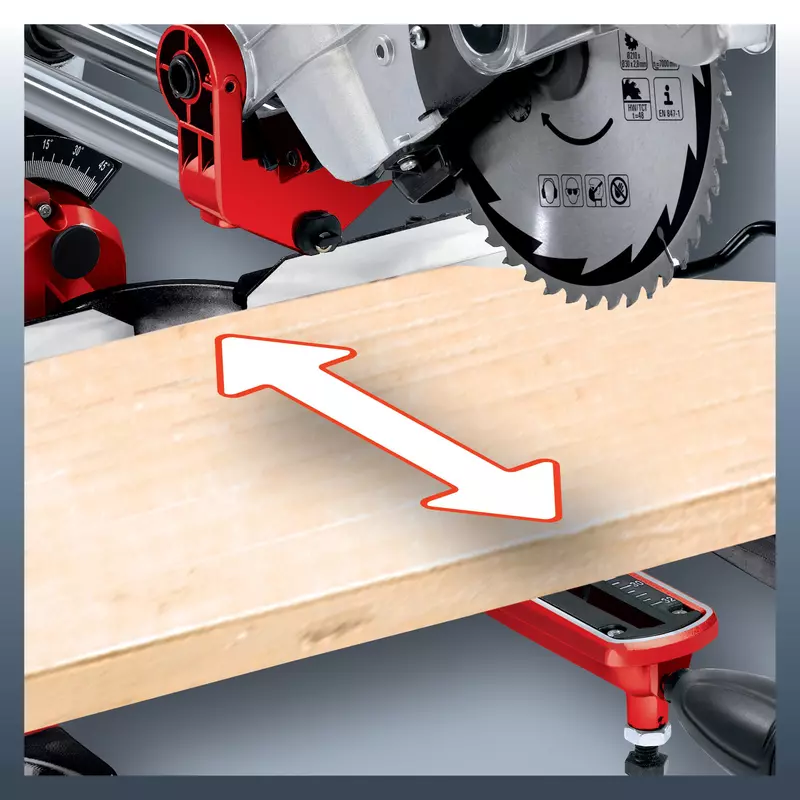

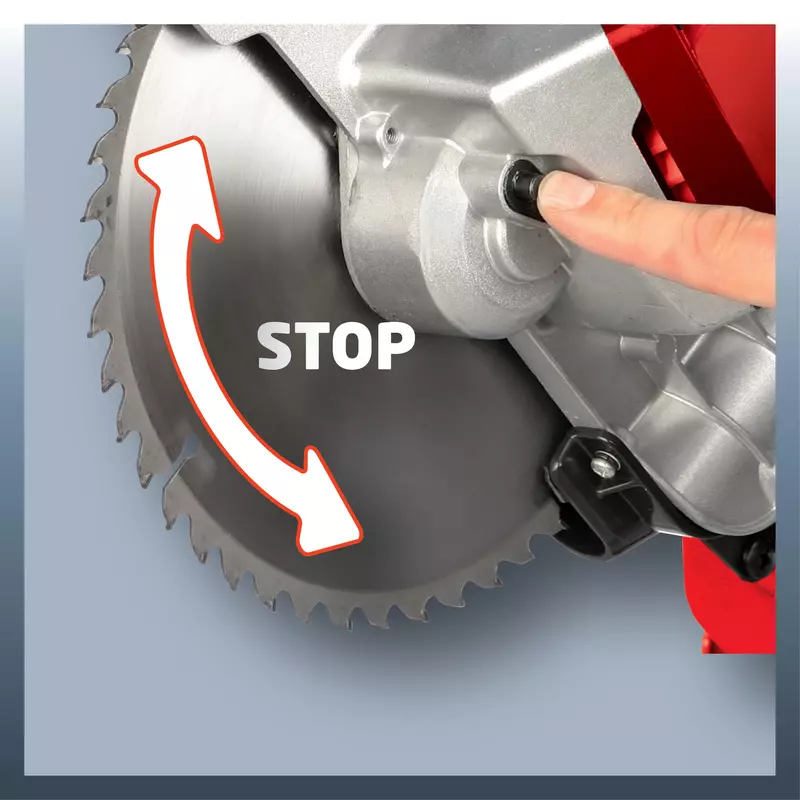

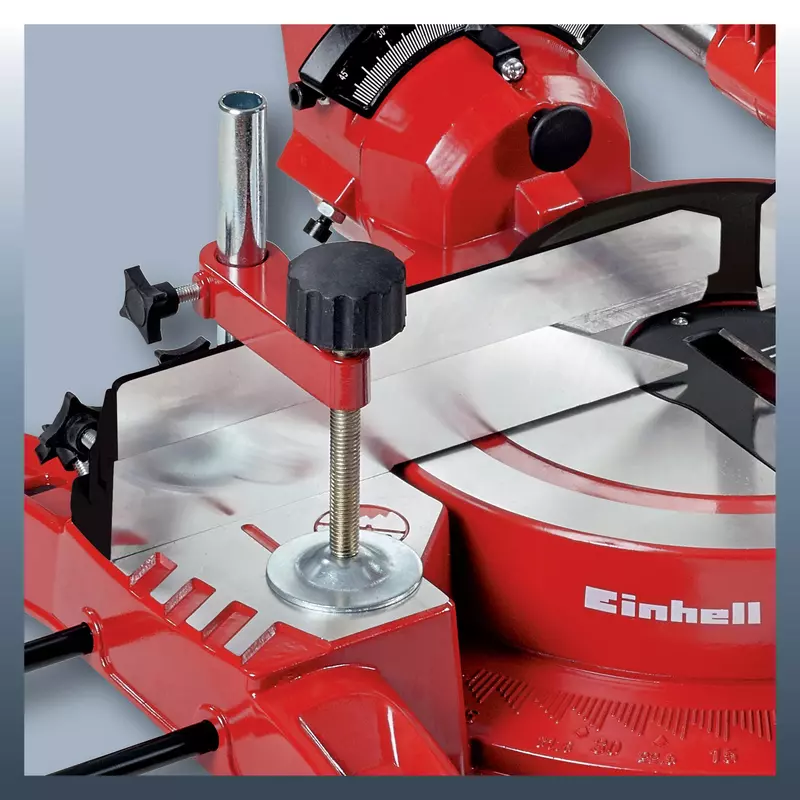

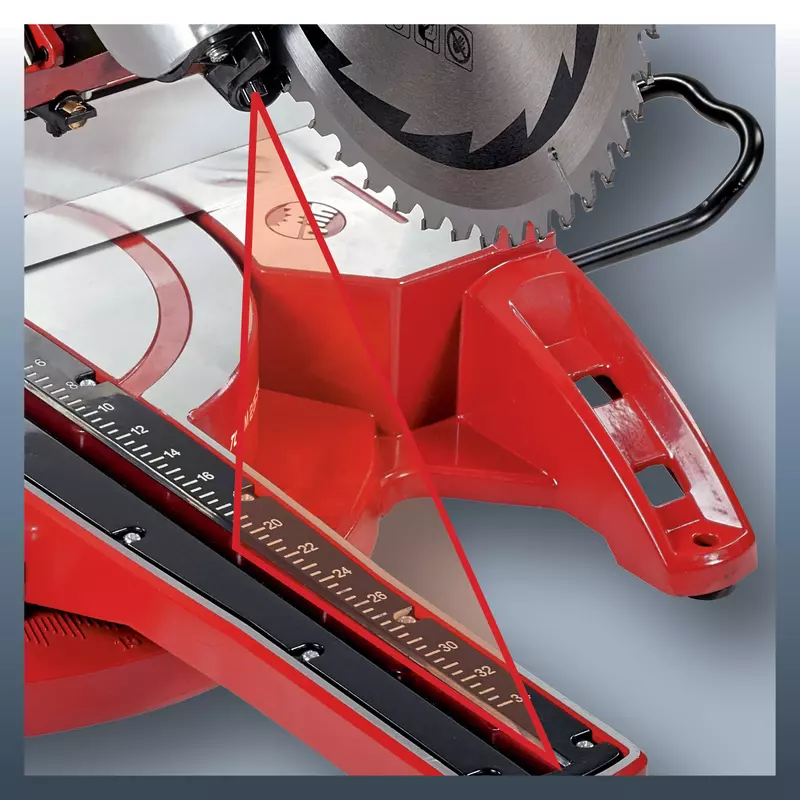

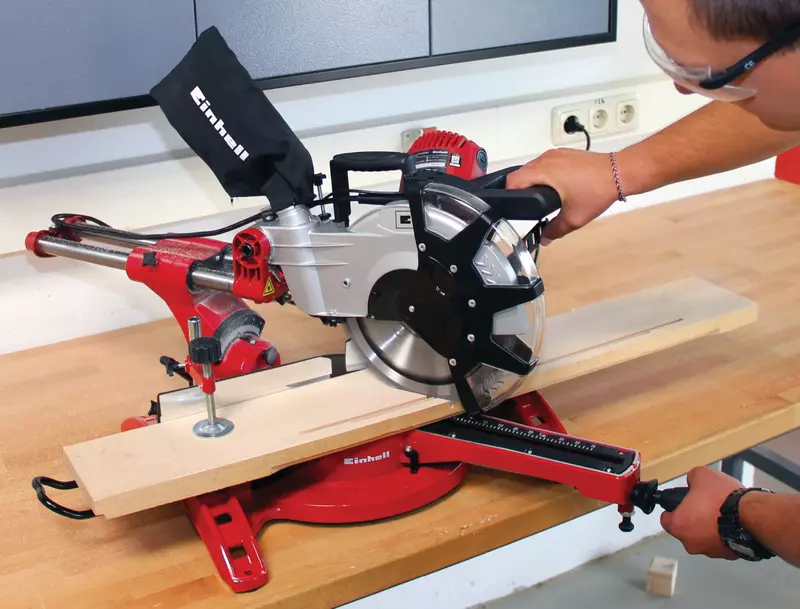

The TC-SM 2534 Dual drag, crosscut and miter saw has a sawing head which can be tilted infinitely from 0° to +45° to the left and right for high flexibility in setting miters on two sides in just one operation. Equipped with a carbide saw blade in professional quality it is suitable for sawing wood, laminated panels and plastics. The high-quality work table made of die-cast aluminium comes with an exact angle adjustment facility which can be latched in various positions. The double mounted drag function of the TC-SM 2534 Dual enables you to cut particularly wide workpieces. The table insert is equipped with a practical scale for reading off the workpiece width easily from the working position. An integrated, mains-powered laser marks the cutting line, enabling the workpiece to be positioned quickly and exactly. While workpiece supports on both sides and a reliable clamping device ensure exact operation, a cutting depth control facility permits even more challenging jobs to be performed with ease. The carbide-tipped saw blade in professional quality offers a cutting capacity of over 200 m in particleboard and is easily changed thanks to a spindle lock. A sawdust bag keeps the workplace clean and a transport brace ensures easy and safe transportation.
|Mains supply||230 V | 50 Hz|
|Max. power (S6 | S6%)||2350 W | 25 %|
|Idle speed||4000 min^-1|
|Saw blade||250 mm x 30 mm|
|Mitre cut||45 ° - 45 °|
|Swiveling range||45 ° - 45 °|
|Cutting capacity 90° x 90°||340 mm x 75 mm|
|Cutting capacity 90° x 45°||240 mm x 75 mm|
|Cutting capacity 45° x 90°||340 mm x 42 mm|
|Cutting capacity 45° x 45°||240 mm x 42 mm|
|Diameter of suction adapter||36 mm|
