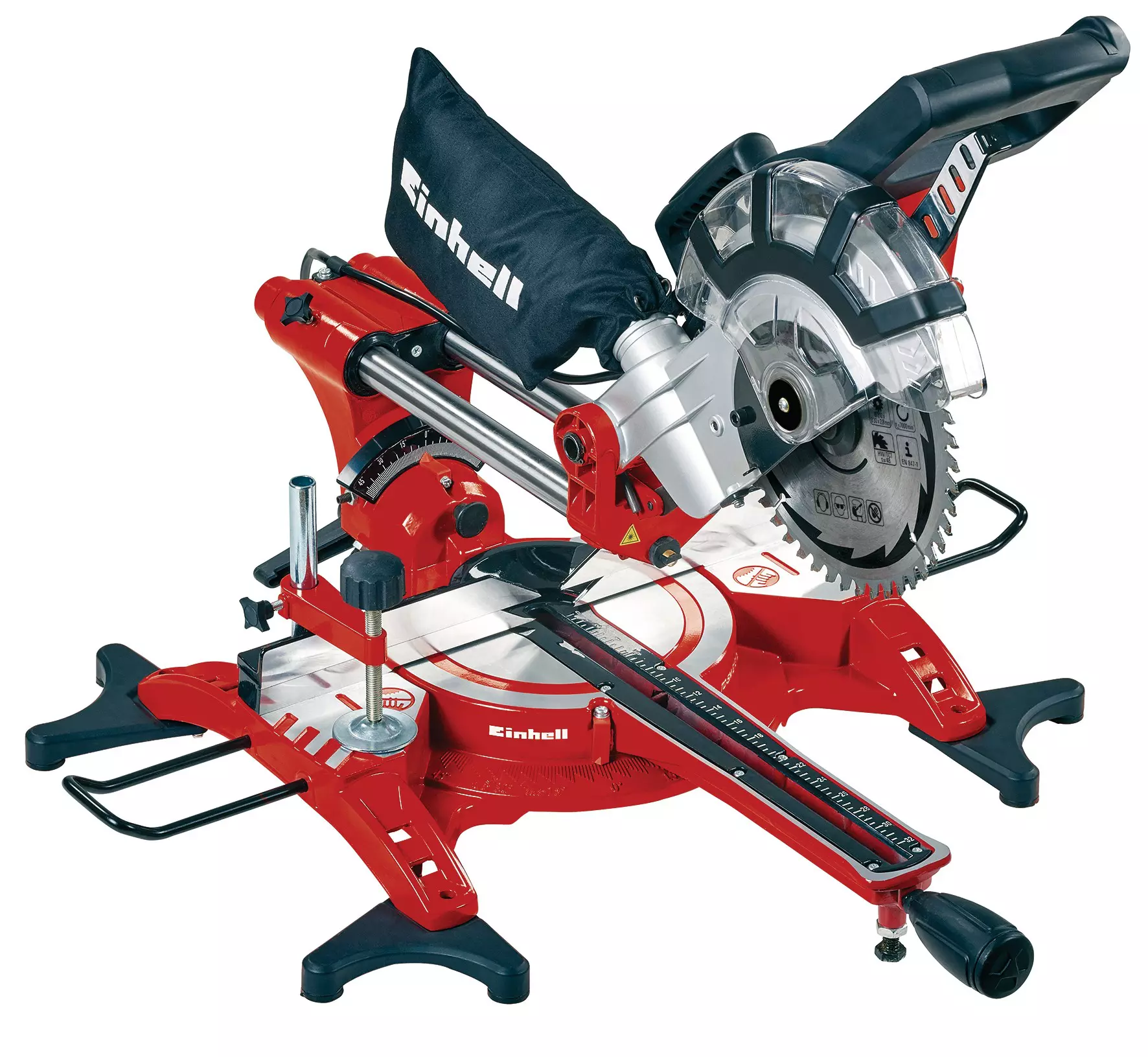

Sliding Mitre Saw

TC-SM 2131 Dual

Item no.: 4300835 EAN: 4006825584936
  • Integrated drag function for wide workpieces

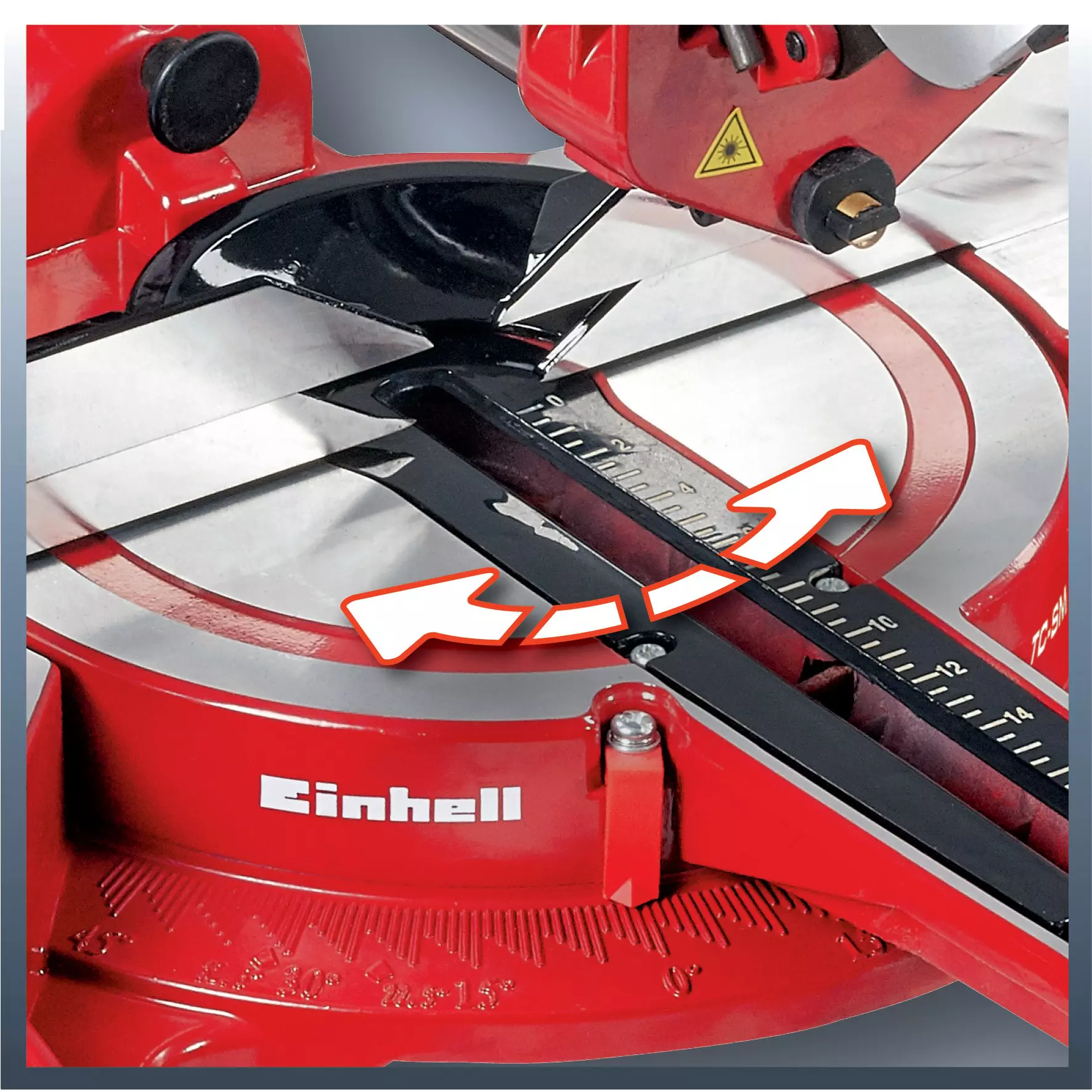

  • Turntable with precise angle setting for angular cuts

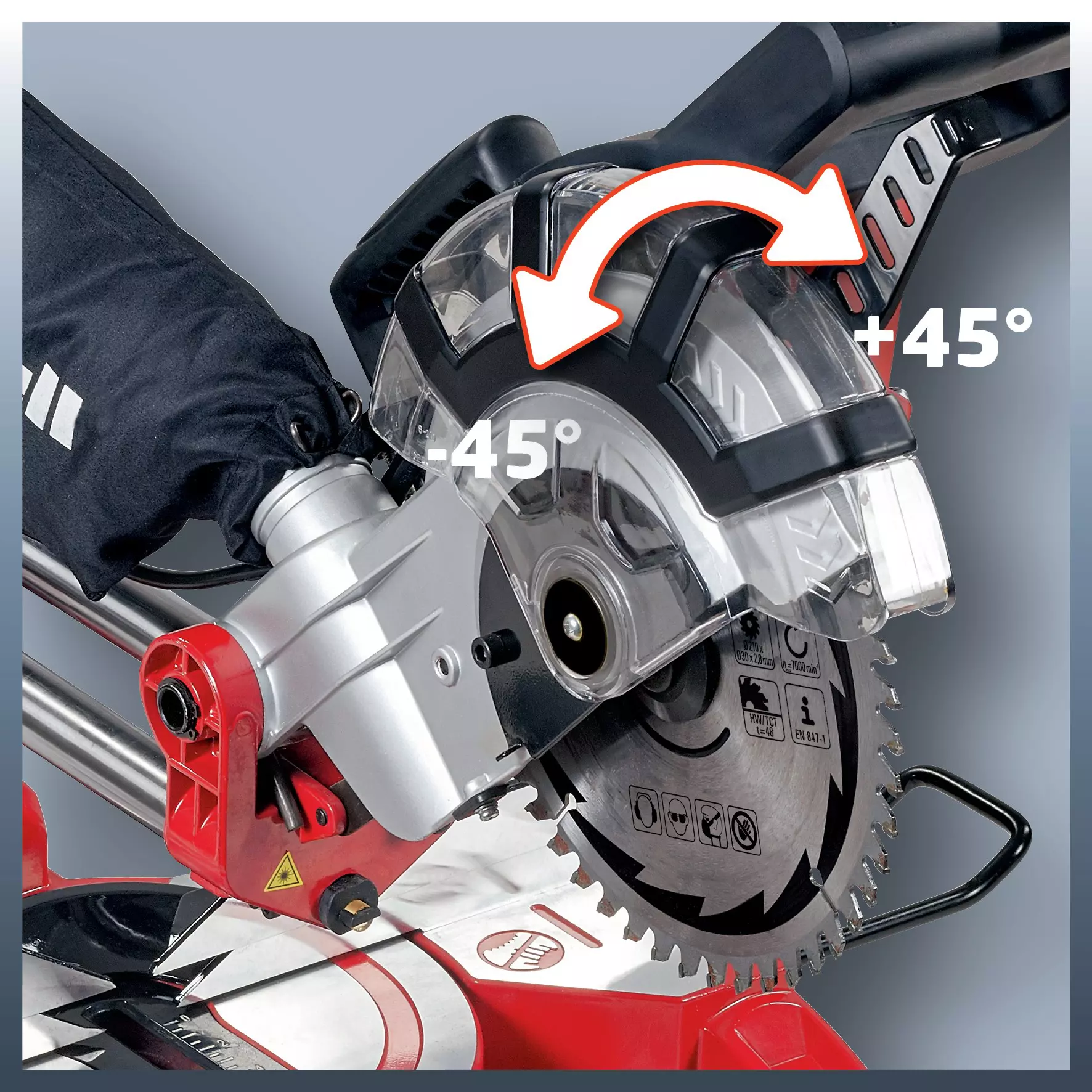

  • Saw head tilts to the left and right for miter cutting
  • Includes laser (mains-powered) for precise guidance while cutting

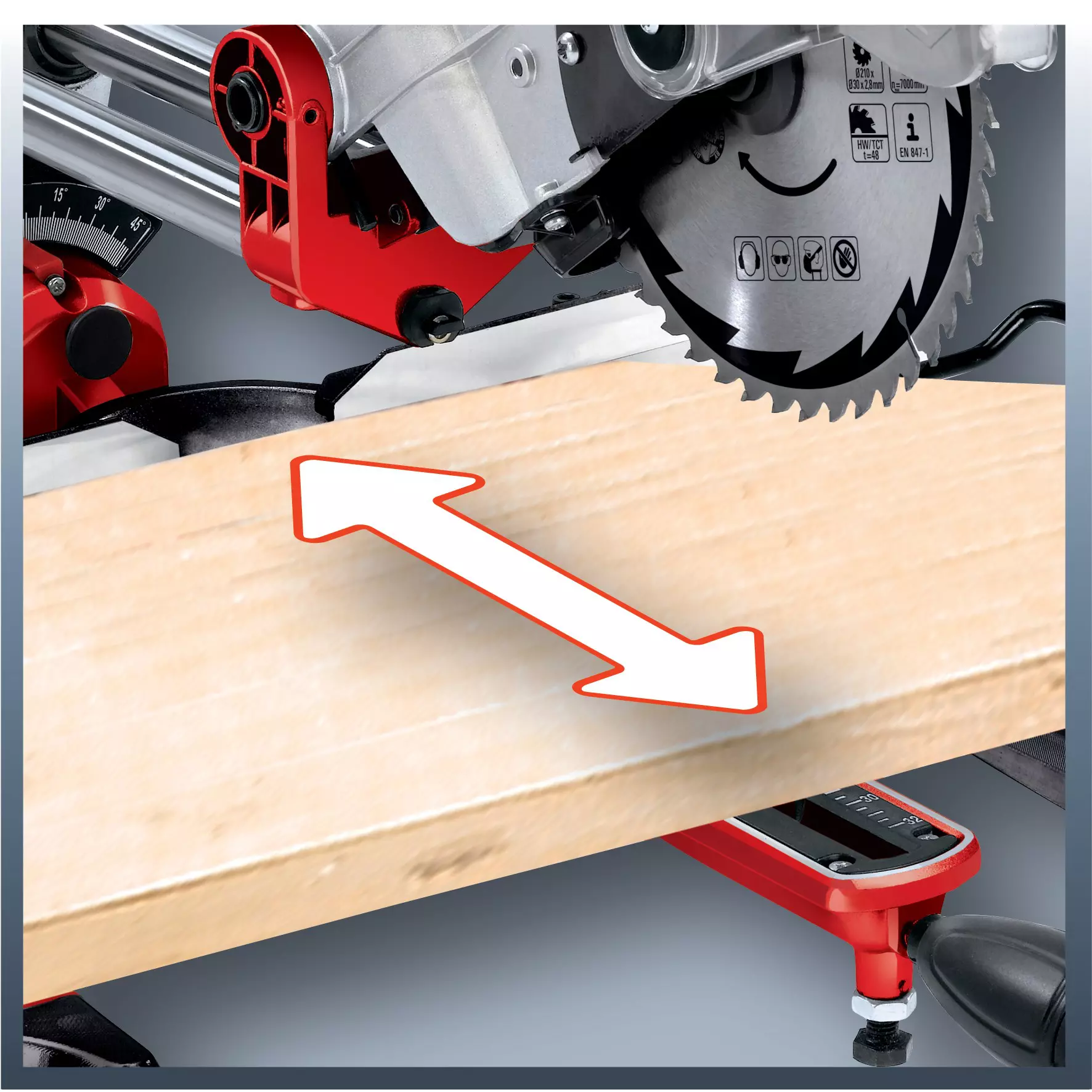

  • Supports for sawing long workpieces
  • Workpiece stop with rails adjustable to the left and right
  • High-grade carbide-tipped precision saw blade

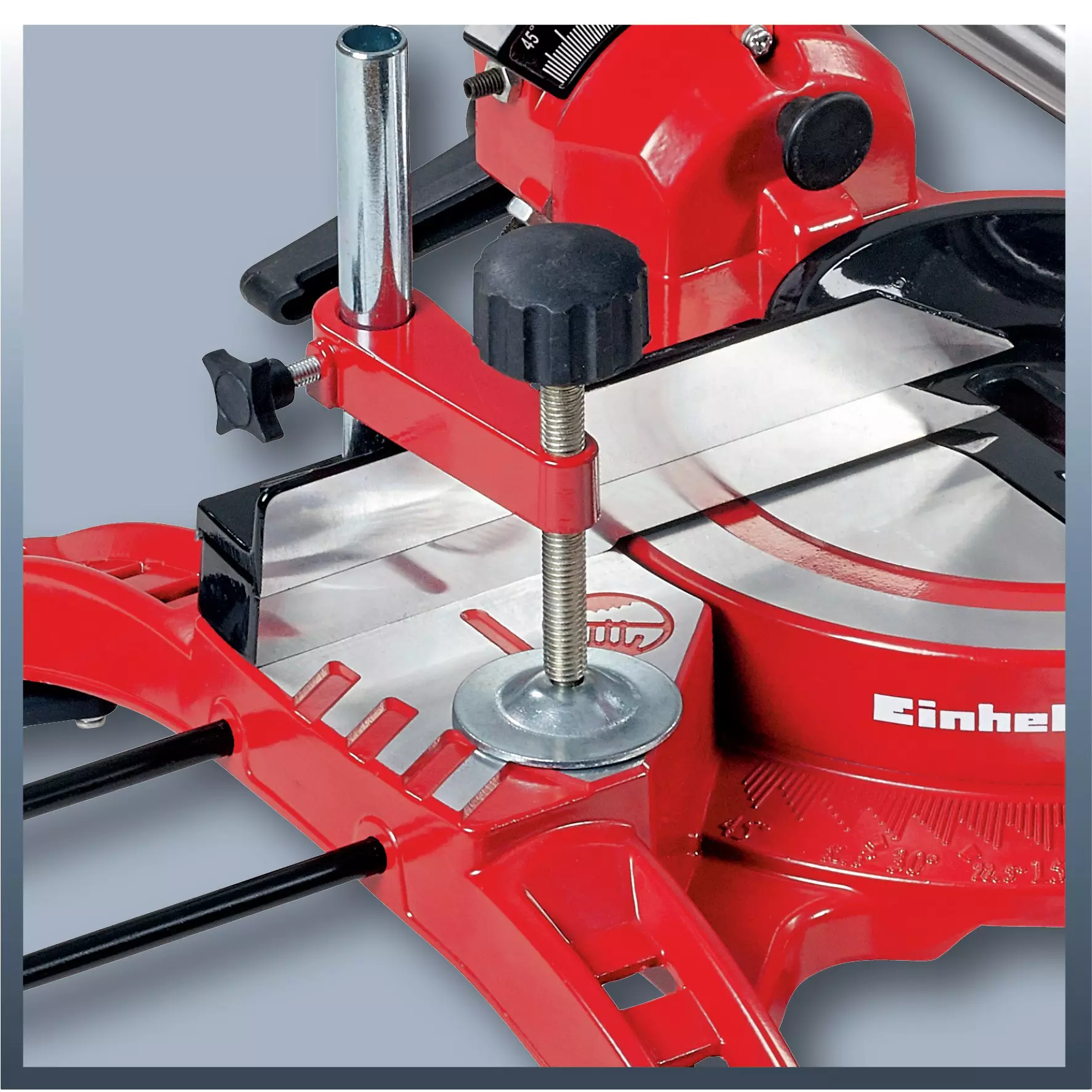

  • Clamping device for holding the workpiece securely in position

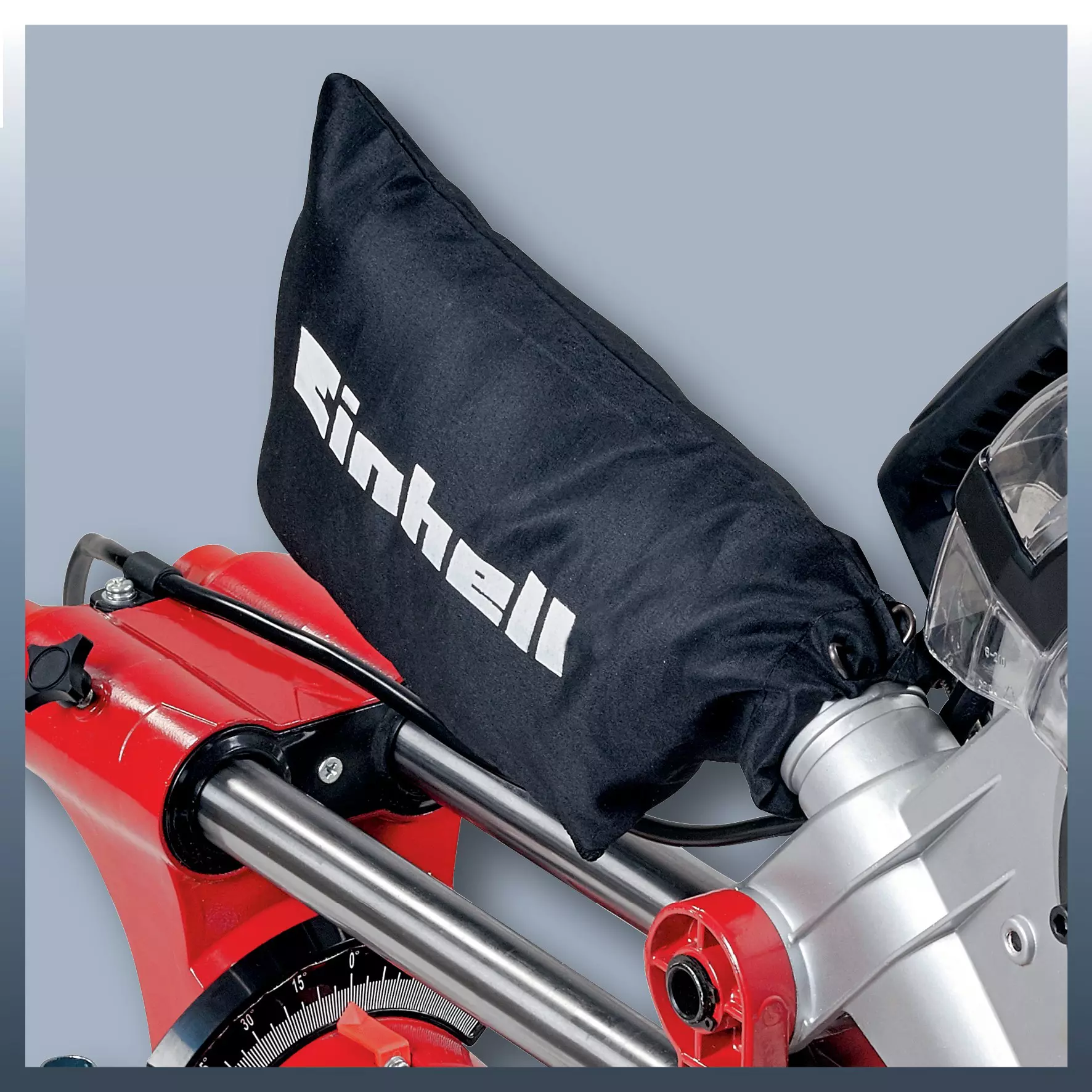

  • Includes sawdust bag to keep the workplace clean
  • The transport brace ensures safe mobility

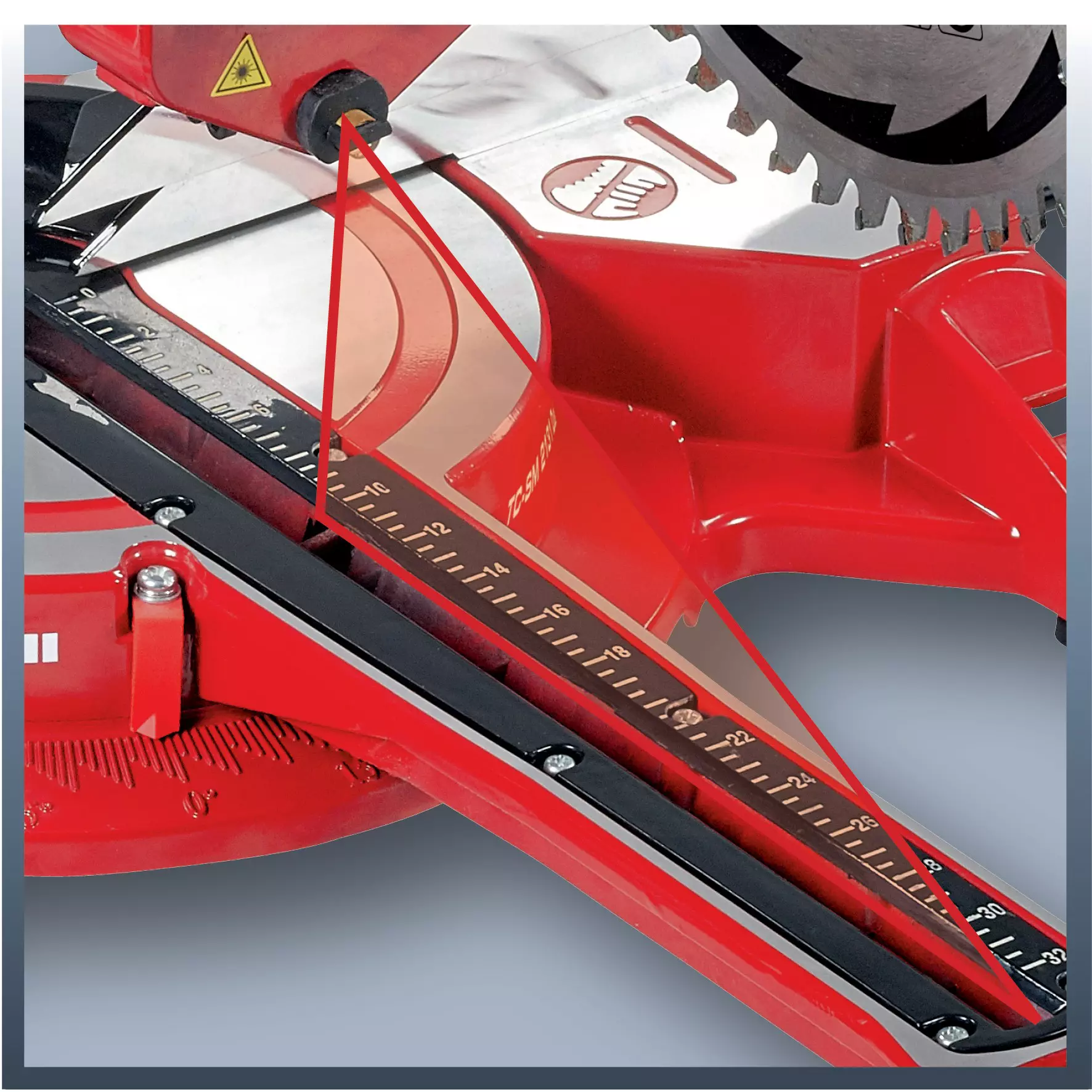

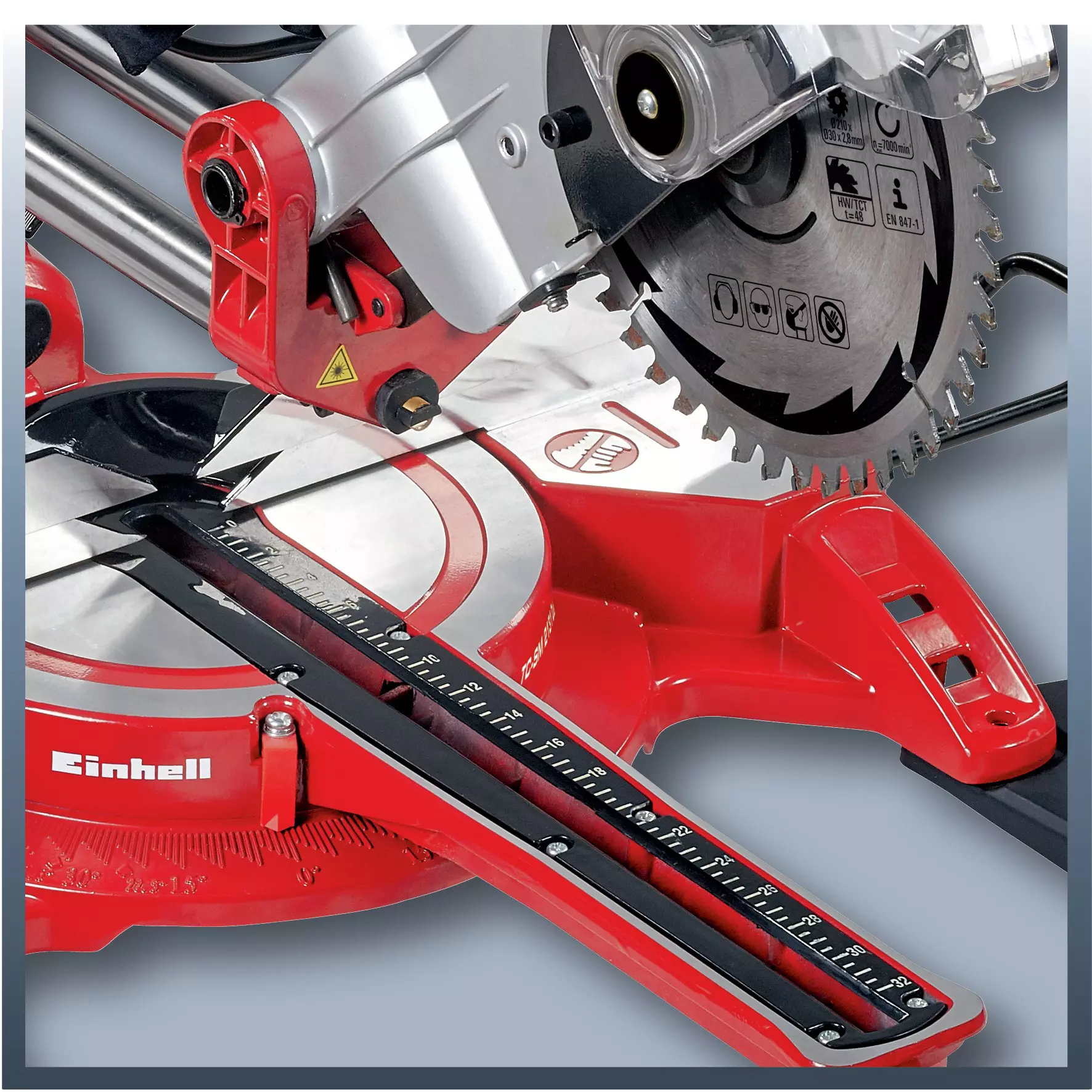

  • Table insert with scale
See more information
Show less information
einhell-classic-sliding-mitre-saw-4300835-productimage-001
Article description

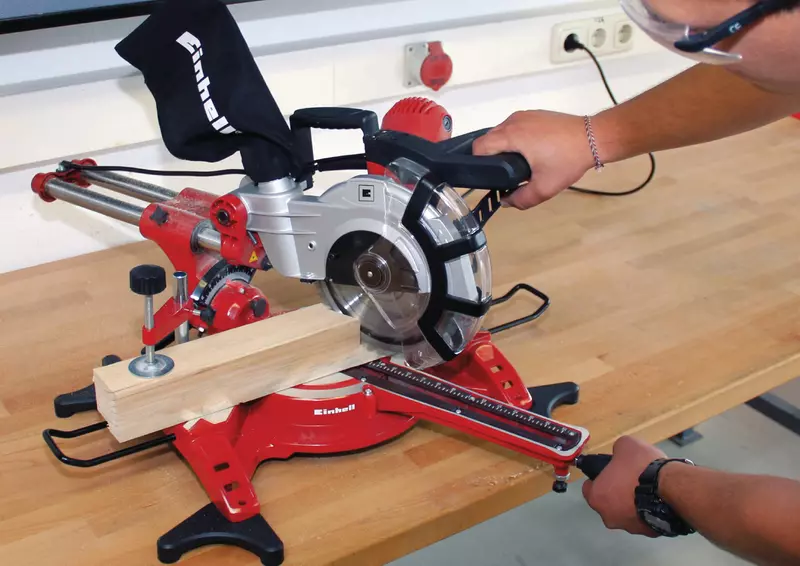

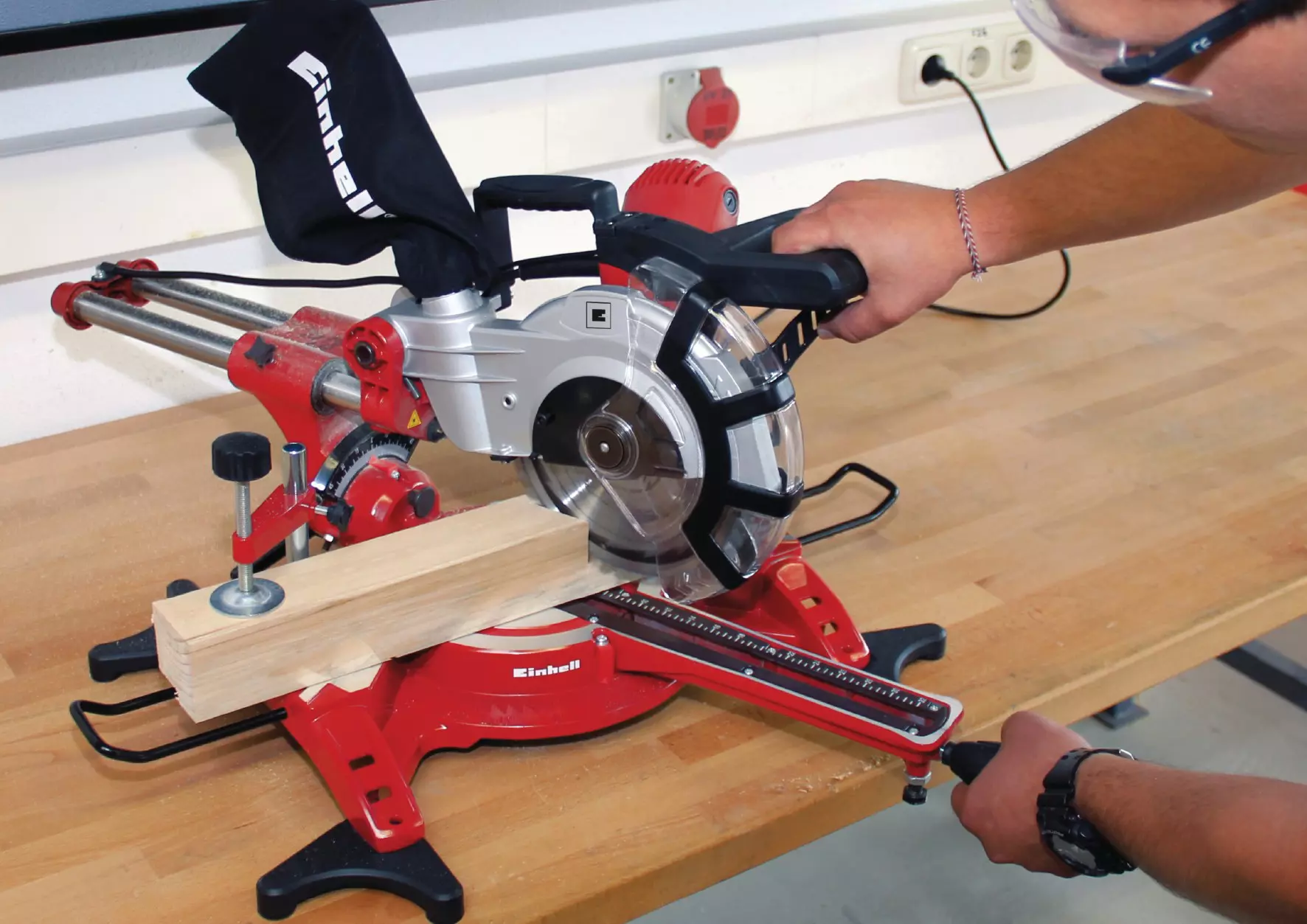

The TC-SM 2131 Dual is a drag, crosscut and miter saw for cutting wood, laminated panels and plastic. The saw head can be tilted to the left and right for high flexibility in setting miters on two sides. An integrated, mains-powered laser marks the cutting line, enabling the workpiece to be positioned quickly and exactly. The high-quality turntable of the TC-SM 2131 Dual comes with an exact angle adjustment facility for angular cuts which can be latched single handedly in various positions. The integrated drag function enables you to cut particularly wide workpieces. Workpiece supports on two sides, a clamping device for reliable securing of the workpiece and a workpiece stop with rails that adjust to the left and right enable safe, precise operation. The table insert is equipped with a practical scale for reading off the workpiece width. The high-grade carbide-tipped precision saw blade guarantees clean, powerful cutting results. A sawdust bag keeps the workplace clean. A transport brace is provided for easy and safe mobility.

See more information
Show less information

Technical details

Mains supply230 V | 50 Hz
Power1500 W
Max. power (S2 | S2time)1800 W | 5 min
Idle speed5000 min^-1
Saw blade210 mm x 30 mm
Mitre cut45 ° - 45 °
Swiveling range45 ° - 45 °
Cutting capacity 90° x 90°310 mm x 62 mm
Cutting capacity 90° x 45°210 mm x 62 mm
Cutting capacity 45° x 90°310 mm x 36 mm
Cutting capacity 45° x 45°210 mm x 36 mm
Diameter of suction adapter36 mm
Length717 mm
Width455 mm
Height393 mm
